DRONE HUNTER FD-A

DRONE HUNTER FD-A

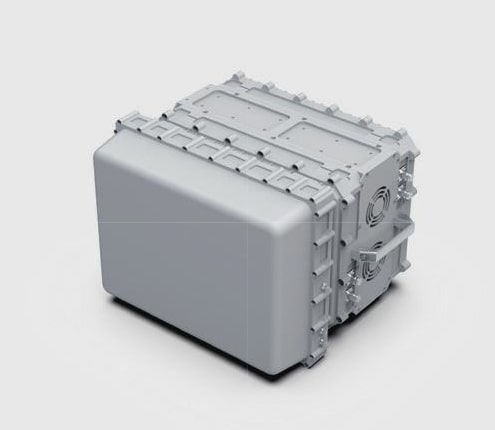

Drone Hunter FD-A is a powerful countermeasure against drone threats. Designed to cover ISM bands and GNSS L1 , L2, L5 it effectively neutralizes a single drone or multiple drones approaching in a direction from a distance of 8km and operating within its antenna beam width. It is equipped with high-power amplifiers and signal generators to enable powerful multi-band continuous jamming.

This field-proven solution operates with a positioner that receives data from a seamlessly integrated detection/identification system by OURANOSTM C2 or third-party systems. In addition, it can be used as a stationary/mobile solution.

DRONE HUNTER FD-A

Features

Frequency
Ranges

ISM 433 & 900MHz
ISM 2.4 & 5.8GHz
GNSS L1 , L2, L5

Jamming
Range

FD3A : 3km
FDBA : 8km

Lightweight
efficient

antennas

Adjustable output power per band

Optimum signal generators and amplifiers Stationary/mobile operation
MIL-STD-810G

Specifications

Parameter

Value

Frequency Band (FD3A)

2.4GHz ISM : 2,400 ~ 2,485MHz
(AZ / EL : 30° 土 10°)
5.8GHz ISM : 5,725 - 5,875MHz
(AZ / EL : 30° 土 10°)
GNSS L1 : 1,559 - 1,610MHz
(AZ / EL : 30° 土 10°)
GNSS L2, L5 : 1,164 ~ 1,300MHz
(AZ / EL : 30° 土 10°)

Frequency Band (FDBA)

2.4GHz ISM : 2,400 ~ 2,485MHz
(AZ / EL : 40° 土 10°)
5.8GHz ISM : 5,725 ~ 5,875MHz
(AZ / EL : 40° 土 10°)
GNSS L1 : 1,559 - 1,610MHz
(AZ / EL : 40° 土 10°)
GNSS L2, L5 : 1,164 ~ 1,300MHz
(AZ / EL : 40° 土 10°)

Jamming Range

FD3A . 3km
FDBA . 8km

Jamming Signal Source

Linear FM with Noise Modulation

Cooling Method

Forced Air Cooling

Operating Temperature

- 32°C ~ +50°C

Storage Temperature

- 33'C ~ +65°C

Power Supply

28 VDC (A power supply unit will be supplied.)

Ingress Protection

IP67

Dimensions

FD3A : 480 x 330 x 388 mm

Weight

FD3A : 31.2kg

Operating Range

AZ : 士1so·. EL : -10· ~ go•

Operating Speed

AZ : 60" / sec, EL : 30" / sec

All the data and appearance of the product are subject to change by RF environments and according to customer requirements.

ANTENNA

– A directional radiation pattern, which enables the concentration of radiation power in a specific direction

– Electrical performance improvement through optimization of multi-band radiation characteristics

– Possession of integrated component development technology and implementation of miniaturization

– Individual implementation of radiation components by frequency band (easy modification of electrical performance by frequency band, convenient response to customer requirements, excellent maintainability, and individual component interchangeability)

ADVANTAGE

– Design seamlessly integrates 6 bands into one compact unit
– Enhanced Usability : Integrated All-in-one antenna design
– Compact and lightweight design for improved output efficiency

Application area

  • national critical infrastructure
  • multi-use facilities
  • VIP protection
national critical infrastructure

national critical infrastructure

Protect national critical infrastructure, including energy and key industrial infrastructure, also border areas requiring security and protection, such as military bases, prisons, etc

multi-use facilities

multi-use facilities

Protect multi-use facilities exposed to threats such as airport and stadiums to prevent human casualties

VIP protection

VIP protection

Protect vehicles and embassy facilities as a means of protecting VIPs
