WIDE BAND SCANNER

Wild Band Scanner is a fixed type CUAS drone RF detection system designed to detect and direction-find commercial drones and control signals.

Fixed type

WIDE BAND SCANNER

WIDE BAND SCANNER

OURANOS™ RFDF is designed to detect and direction-find commercially available drones and control signals.

RFDF has dedicated processing resources and proven operation references in the urban environment. RFDF provides user-friendly control interface and available to deploy in various configuration such as mobile / stationary / portable. It is an integrated feature for detecting, classifying and tracking drones, locating the controller and classifying the drone manufacturers and model numbers.

The location of drone and remote control can be determined with multiple sensors through triangulation.

Automatic operation and remote notification are available through the OURANOSTM C2 system

Wide band scanner Shapes


ANTENNA

SDR

PROCESSOR

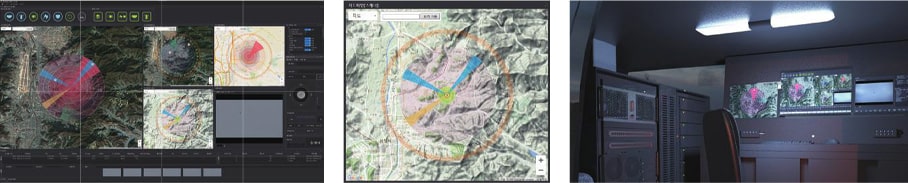

RADOME SPECIFICATION

WIDE BAND SCANNER RADOME SPECIFICATION

Features

Proven operation

references in urban environment

Geolocation estimation

of drone and controller with multiple sensors

Drone classification

function and continuous drone library update

User-friendly,

simple operation and easy to deploy

Specifications

Parameter

Value

Frequency Band

300MHz ~ 6GHz

Jamming Range

≥3km

Detection Angle

360°

Location Accuracy

≤ 5 rms (+/-5°)

Detection Time

≤ 5s

Receiver Noise Level

3 ~ 5dbi

Weight

≤ 20kg (Single System Installation Criteria)

Total Output Power

150W

Power Supply

100V / 240V

Humidity

Up to 85%, non-condensing humidity

Ingress Protection

IP65

Operating Temperature

- 35° C ~ +55° C

Storage Temperature

- 20° C ~ +70° C

Quantity to detect the drone simultaneously

20 Units

Application area

  • national critical infrastructure
  • multi-use facilities
  • VIP protection
national critical infrastructure

national critical infrastructure

Protect national critical infrastructure, including energy and key industrial infrastructure, also border areas requiring security and protection, such as military bases, prisons, etc

multi-use facilities

multi-use facilities

Protect multi-use facilities exposed to threats such as airport and stadiums to prevent human casualties

VIP protection

VIP protection

Protect vehicles and embassy facilities as a means of protecting VIPs
